Thiết bị truyền thông công nghiệp Advantech EKI-1528
Main Features
8-port RS-232/422/485 serial communication
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Supports up to 921.6 kbps, and any baud rate setting
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
Built-in 15 KV ESD protection for all serial signals
SNMP MIB-II for network management
Built-in buzzer for easy location
Standard 1U rackmount size
Rear wiring
Automatic RS-485 data flow control
|
Thiết bị truyền thông công nghiệp Advantech EKI-1526
Main Features
16-port RS-232/422/485 serial communication
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Supports up to 921.6 kbps, and any baud rate setting
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
Built-in 15 KV ESD protection for all serial signals
SNMP MIB-II for network management
Built-in buzzer for easy location
Standard 1U rackmount size
Rear wiring
Automatic RS-485 data flow control
|
Thiết bị truyền thông công nghiệp Advantech EKI-1524
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Supports up to 921.6 kbps, and any baud rate setting
Allows a max. of 5 hosts to access one serial port
Allows a max. of 16 hosts to be accessed as TCP client mode
Built-in 15 KV ESD protection for all serial signals
Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
Supports Windows 2000/XP/Vista/7, Windows CE, and Linux drivers
Automatic RS-485 data flow control
Class I, Division 2 certification
|
Thiết bị truyền thông công nghiệp Advantech EKI-1522
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Supports up to 921.6 kbps, and any baud rate setting
Allows a max. of 5 hosts to access one serial port
Allows a max. of 16 hosts to be accessed as TCP client mode
Built-in 15 KV ESD protection for all serial signals
Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
Supports Windows 2000/XP/Vista/7, Windows CE, and Linux drivers
Automatic RS-485 data flow control
Class I, Division 2 certification
|
Thiết bị truyền thông công nghiệp Advantech EKI-1521
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Provides COM port redirection (Virtual COM), TCP and UDP operation modes
Supports up to 921.6 kbps, and any baud rate setting
Allows a max. of 5 hosts to access one serial port
Allows a max. of 16 hosts to be accessed as TCP client mode
Built-in 15 KV ESD protection for all serial signals
Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
Supports Windows 2000/XP/Vista/7, Windows CE, and Linux drivers
Automatic RS-485 data flow control
Class I, Division 2 certification
|
Thiết bị truyền thông công nghiệp Advantech EKI-1352
Main Features
Link any serial device to an IEEE 802.11 b/g network
Supports wireless LAN Ad-Hoc and Infrastructure modes
Provides COM port redirection, TCP, UDP, and pair connection modes
Supports up to 921.6 kbps, and any baud rate setting
Provides Web-based configuration and Windows utility
Allows a max. of 5 hosts to access one serial port
Supports Windows 2000/XP/Vista/7, Windows CE, and Linux drivers
Allows a max. of 4 hosts to be accessed as TCP client mode
Built-in 15 KV ESD protection for all serial signals
Supports DHCP protocol
Supports secure access with WEP, WPA, WPA2
|

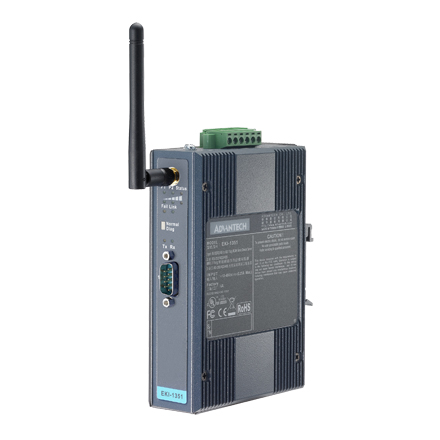

Thiết bị truyền thông công nghiệp Advantech EKI-1351
Main Features
Link any serial device to an IEEE 802.11 b/g network
Supports wireless LAN Ad-Hoc and Infrastructure modes
Provides COM port redirection, TCP, UDP, and pair connection modes
Supports up to 921.6 kbps, and any baud rate setting
Provides Web-based configuration and Windows utility
Allows a max. of 5 hosts to access one serial port
Supports Windows 2000/XP/Vista/7, Windows CE, and Linux drivers
Allows a max. of 4 hosts to be accessed as TCP client mode
Built-in 15 KV ESD protection for all serial signals
Supports DHCP protocol
Supports secure access with WEP, WPA, WPA2
|

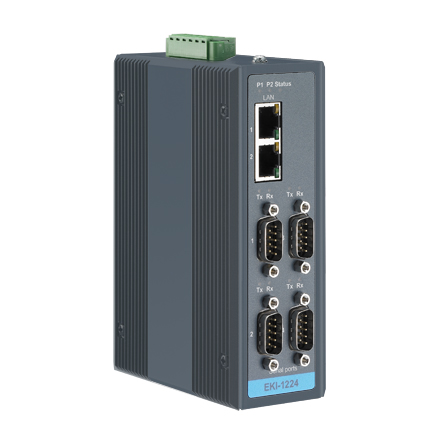

Thiết bị truyền thông công nghiệp Advantech EKI-1224
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Integration of Modbus TCP and Modbus RTU/ASCII networks
Supports up to 921.6 kbps, and any baud rate setting
Supports up to 16 connections and 32 requests simultaneously
Supports 31 slaves per serial port
Easy-managing Advantech Serial Device Server Configuration Utility for Windows 2000/XP/Vista/7
Auto searching slave ID over configuration utility
Mounts on DIN-rail, wall or panel
Software selectable RS-232/422/485 communication
Built-in 15 KV ESD protection for all serial signals
Automatic RS-485 data flow control
|

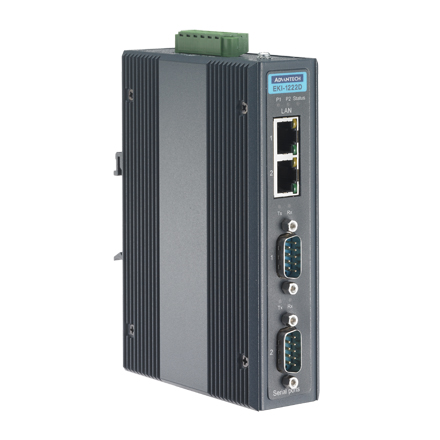

Thiết bị truyền thông công nghiệp Advantech EKI-1222D
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for Daisy Chian connectivity
Integration of Modbus TCP and Modbus RTU/ASCII networks
Supports Ethernet auto-bypass function
Master mode supports 32 TCP slaves at the same time
Slave mode supports up to 16 TCP masters
Supports mapping Modbus slave ID option
Auto searching Modbus slave ID over configuration utility
Mounts on DIN-rail, wall or panel
Class I, Division 2 certification
|

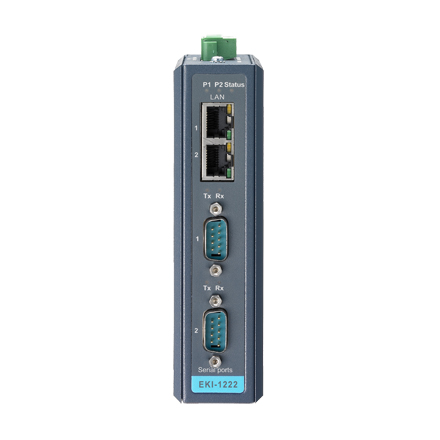

Thiết bị truyền thông công nghiệp Advantech EKI-1222
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Integration of Modbus TCP and Modbus RTU/ASCII networks
Supports up to 921.6 kbps, and any baud rate setting
Supports up to 16 connections and 32 requests simultaneously
Supports 31 slaves per serial port
Easy-managing Advantech Serial Device Server Configuration Utility for Windows 2000/XP/Vista/7
Auto searching slave ID over configuration utility
Software selectable RS-232/422/485 communication
Mounts on DIN-rail, wall or panel
Built-in 15 KV ESD protection for all serial signals
Automatic RS-485 data flow control
|
Thiết bị truyền thông công nghiệp Advantech EKI-1221D
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for Daisy Chian connectivity
Integration of Modbus TCP and Modbus RTU/ASCII networks
Supports Ethernet auto-bypass function
Master mode supports 32 TCP slaves at the same time
Slave mode supports up to 16 TCP masters
Supports mapping Modbus slave ID option
Auto searching Modbus slave ID over configuration utility
Mounts on DIN-rail, wall or panel
Class I, Division 2 certification
|

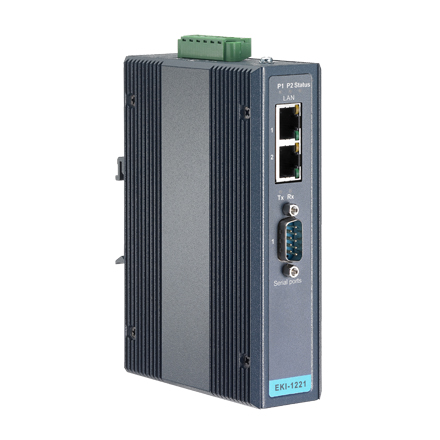

Thiết bị truyền thông công nghiệp Advantech EKI-1221
Main Features
Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
Integration of Modbus TCP and Modbus RTU/ASCII networks
Supports up to 921.6 kbps, and any baud rate setting
Supports up to 16 connections and 32 requests simultaneously
Supports 31 slaves per serial port
Easy-managing Advantech Serial Device Server Configuration Utility for Windows 2000/XP/Vista/7
Auto searching slave ID over configuration utility
Software selectable RS-232/422/485 communication
Mounts on DIN-rail, wall or panel
Built-in 15 KV ESD protection for all serial signals
Automatic RS-485 data flow control
|

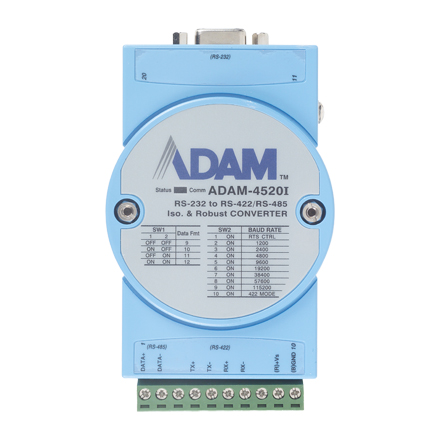

Thiết bị truyền thông công nghiệp Advantech ADAM-4520I
Main Features
Wide Operating Temperature: -40 ~ 85° C
Automatic RS-485 data flow control
3000 VDC isolation protection
Surge protection RS-485 data line
Transmission speed up to 115.2 Kbps
Networking up to 1200 meters (4000 feet)
Reserved space for termination resistors
Power and data flow indicator for troubleshooting
Power requirement: +10 to +48 VDC
Mounts easily on a DIN-rail, panel or piggyback
|

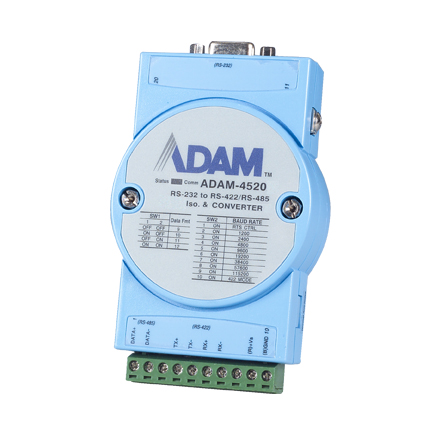

Thiết bị truyền thông công nghiệp Advantech ADAM-4520
Main Features
Automatic RS-485 data flow control
3000 VDC isolation protection
Surge protection RS-485 data line
Transmission speed up to 115.2 Kbps
Networking up to 1200 meters (4000 feet)
Reserved space for termination resistors
Power and data flow indicator for troubleshooting
Power requirement: +10 to +30 VDC
Mounts easily on a DIN-rail, panel or piggyback
|

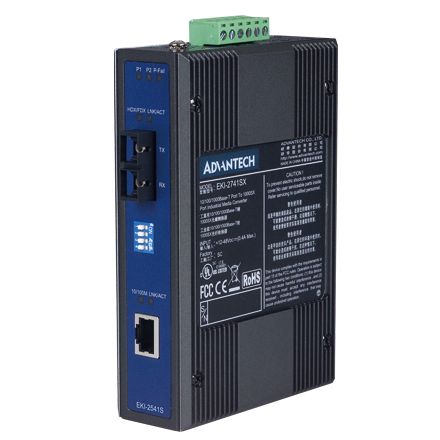

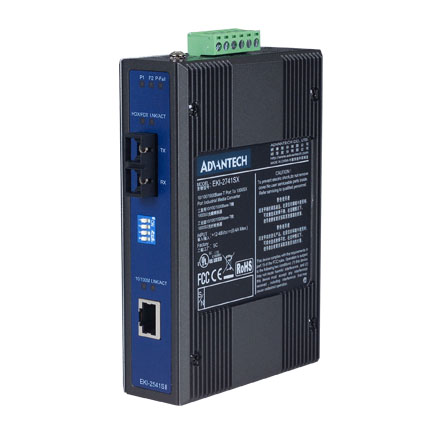

Thiết bị truyền thông công nghiệp Advantech EKI-2741SX
Main Features
Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
Provides 1 x 1000 Mbps fiber port with SC type connector for 1000Base-SX device
Provides DIP switch for full/half duplex setting
Supports MDI/MDI-X auto crossover
Supports auto-negotiation
Supports surge (EFT) protection 3,000 VDC for power line
Supports 4,000 VDC Ethernet ESD protection
Supports redundant +12-48 VDC power input
Provides flexible mounting: DIN-rail & Wallmounting
Provides Link Fault Pass-through (LFP)
Supports Operating Temperature from -10 ~ 60° C
|
Thiết bị truyền thông công nghiệp Advantech EKI-2741LXI
Main Features
Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
Provides 1 x 1000 Mbps fiber port with Single-mode SC type connector
Provides DIP switch for full/half duplex setting
Supports MDI/MDI-X auto crossover
Supports auto-negotiation
Provides 3,000 VDC surge (EFT) protection
Supports 4,000 VDC Ethernet ESD protection
Supports +12-48 VDC power input
Provides flexible mounting: DIN-rail & Wallmounting
Provides Link Fault Pass-through (LFP)
Supports wide Operating Temperature from -40 ~ 75° C
|

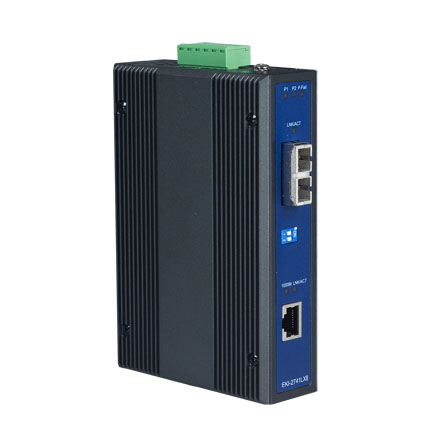

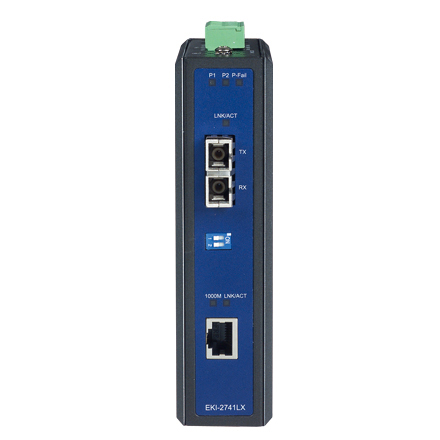

Thiết bị truyền thông công nghiệp Advantech EKI-2741LX
Main Features
Provides 1 x 1000 Mbps Ethernet port with RJ45 connector
Provides 1 x 1000 Mbps fiber port with SC type connector for 1000Base-LX device
Provides DIP switch for full/half duplex setting
Supports MDI/MDI-X auto crossover
Supports auto-negotiation
Supports surge (EFT) protection 3,000 VDC for power line
Supports 4,000 VDC Ethernet ESD protection
Supports redundant +12-48 VDC power input
Provides flexible mounting: DIN-rail & Wallmounting
Provides Link Fault Pass-through (LFP)
Supports Operating Temperature from -10 ~ 60° C
|

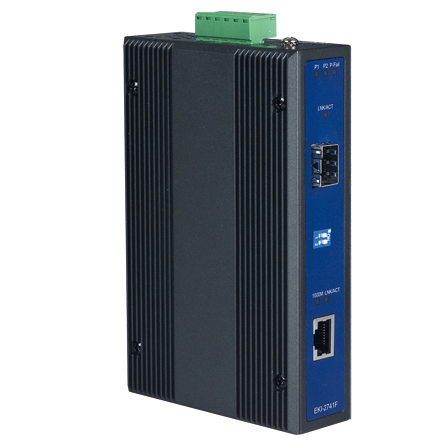

Thiết bị truyền thông công nghiệp Advantech EKI-2741F
Main Features
Provides 1 x 1000 Mbps Ethemet port with RJ45 connector
Provides 1 x 1000 Mbps fiber port with SC or SFP (mini-GBIC) type connector for 1000Base-SX/LX devic
Provides DIP switch for full/half duplex setting
Supports MDI/MDI-X auto crossover
Supports auto-negotiation
Supports 3,000 VDC surge (EFT) protection
Supports 4,000 VDC Ethement DSD protection
Supports redundant +12-48 VDC power input
Provides flexible mounting: DIN-rail & Walmounting
Provides Link Fault Pass-through (LFP)
Supports opearting temperature from -10 ~ 60° C
|
Thiết bị truyền thông công nghiệp Advantech EKI-2541SI
Main Features
Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
Provides 1 x 100 Mbps multi-mode/single-mode SC type fiber port
Provides internal jumper for Link Fault Pass-through (LFP) setting
Supports full/half duplex flow control
Supports store and forward transmission
Supports auto-negotiation
Supports MDI/MDI-X auto crossover
Supports redundant +12-48 VDC power input
Provides flexible mounting: DIN-rail & Panel Mounting
Supports wide Operating Temperature from -40 ~ 75° C
|
Thiết bị truyền thông công nghiệp Advantech EKI-2541S
Main Features
Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
Provides 1 x 100 Mbps single-mode fiber optic port
Provides internal jumper for Link Fault Pass-through (LFP) setting
Supports full/half duplex flow control
Supports store and forward transmission
Supports auto-negotiation
Supports MDI/MDI-X auto crossover
Supports redundant +12-48 VDC power input
Provides flexible mounting: DIN-rail & Panel Mounting
Supports Operating Temperature from -10 ~ 60° C
|

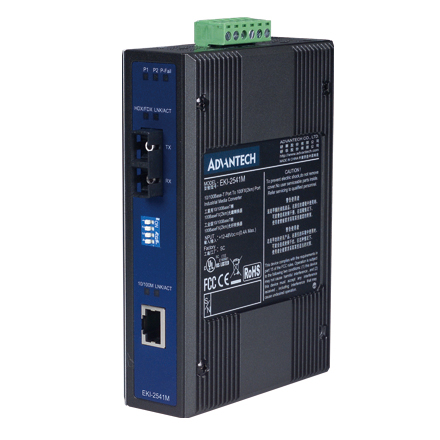

Thiết bị truyền thông công nghiệp Advantech EKI-2541M
Main Features
Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
Provides 1 x 100 Mbps multi-mode SC type fiber port
Provides internal jumper for Link Fault Pass-through (LFP) setting
Supports full/half duplex flow control
Supports store and forward transmission
Supports auto-negotiation
Supports MDI/MDI-X auto crossover
Supports +12-48 VDC power input
Provides flexible mounting: DIN-rail & Panel Mounting
Supports Operating Temperature from -10 ~ 60° C
|

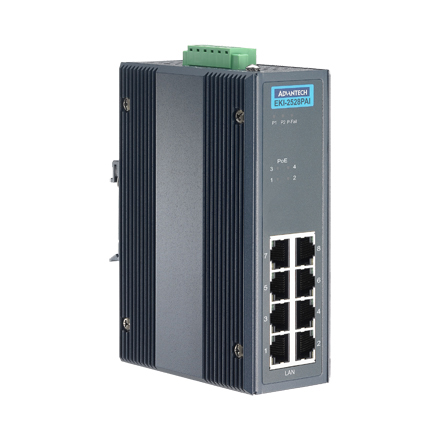

Thiết bị truyền thông công nghiệp Advantech EKI-2528PAI
Main Features
Provides 8 Fast Ethernet ports with 4 PoE ports with injector function
Supports 10/100Mbps auto negotiation
Provides broadcast storm protection
Supports Ethernet ESD protection
Provides power line EFT protection
56Kbytes Packet Buffer and 2K MAC Address Table
Provides Slim size, DIN-rail/Wallmount with IP30 metal mechanism
Supports wide operating temperatures (-40 ~ 75° C)
|
Thiết bị truyền thông công nghiệp Advantech EKI-2528I
Main Features
Provides 8 Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps Auto Negotiation
Provides broadcast storm protection
Provides compact size with DIN-rail/Wallmount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay
Supports wide operating temperatures from -40 ~ 75° C
|

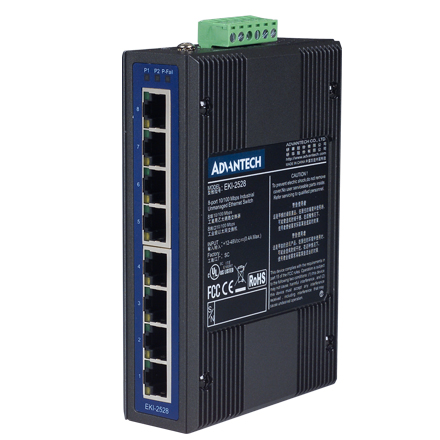

Thiết bị truyền thông công nghiệp Advantech EKI-2528
Main Features
Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100Mbps Auto Negotiation
Provides broadcast storm protection
Provides compact size with DIN-rail/Wallmount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay
Supports operating temperatures from -10 ~ 60° C
|

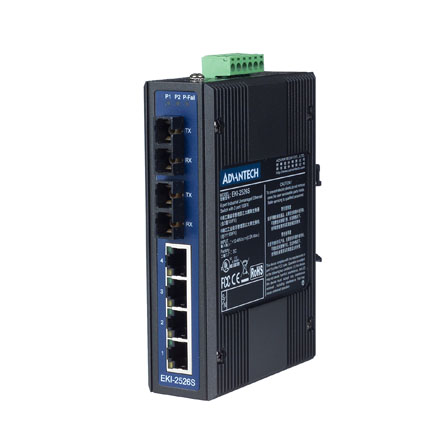

Thiết bị truyền thông công nghiệp Advantech EKI-2526S
Main Features
Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
Provides 2 x 100 Mbps Single-mode SC type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Provides Redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail, Panel mounting
|
